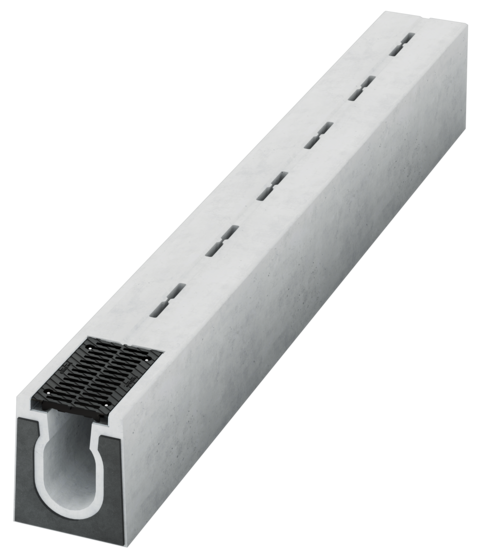

BIRCOsolid slot channels
BIRCOsolid slot channels offer the advantages of a monolithic reinforced concrete slot channel, whilst meeting the requirements of the WHG for less aggressive solutions. Large sealed areas, such as logistics sites, industrial estates or petrol stations and service areas, require robust and reliable drainage solutions that can withstand the high stresses of intensive use for decades. Added to this are temperature fluctuations and the ingress of chemicals and abrasives. In the event of an accident, hazardous liquids can be collected and discharged in a controlled manner thanks to the large backflow volume of the slot channels.
Facts
- Reinforced concrete slot channels DN 200/300, DN 300 and DN 300/400, without inbuilt fall
- C 40/50 concrete
- Length: 4.00 metres, custom lengths available on request
- Brushed finish, perpendicular to the channel run
- Interrupted slot, self-cleaning
- Channels with outlet or inspection opening on request
- Removable double-slot DI grating with large inlet cross-section
- Pre-assembled PE foam panel at the end of the channel as a joint formation
- Proven alkali resistance in accordance with DIN 1045-2
- Building authority approval (No. Z-74.4-251)
- Load class: A 15 – D 400, Type I, and A 15 – F 900, Type I and Type M
Application areas
- Heavy-duty areas subject to high wear and tear
- Areas where mildly corrosive liquids may be spilled, such as petrol stations and lorry loading bays
- Areas subject to maximum stress
- Military operational areas
- WHG facilities and LAU areas
Precisely planned / quickly installed / safety for decades: that’s how projects should run!
To ensure this works, BIRCOsolid slot channels offer a number of advantages, from planning right through to installation:
- Tailored, project-specific and personalised: our planning support
- DIBt-certified safety for swift approval procedures
- Cost- and time-optimised installation for areas ready for use
- Rapid construction progress thanks to long sections with few joints
- Everything made to measure: custom-fit channels on request
- Settlement-free connection to adjacent concrete surfaces
- Freely configurable inspection and drainage openings, hassle-free maintenance
- Textured surface provides grip even when wet
- Large retention capacity: reliable drainage, even during heavy rainfall
- Long-lasting performance thanks to high-quality materials ‘Made in Germany’
