BIRCOport DN 340
Customised solutions for airports and ports – cost-effective and extremely robust
Wherever maximum loads are encountered across large areas, BIRCOport is the ideal solution. Customisable, highly efficient in drainage and easy to install – simply an ingenious solution for new construction projects and the refurbishment of existing systems. BIRCO’s service and advice ensure perfect adaptation to the specific construction project.

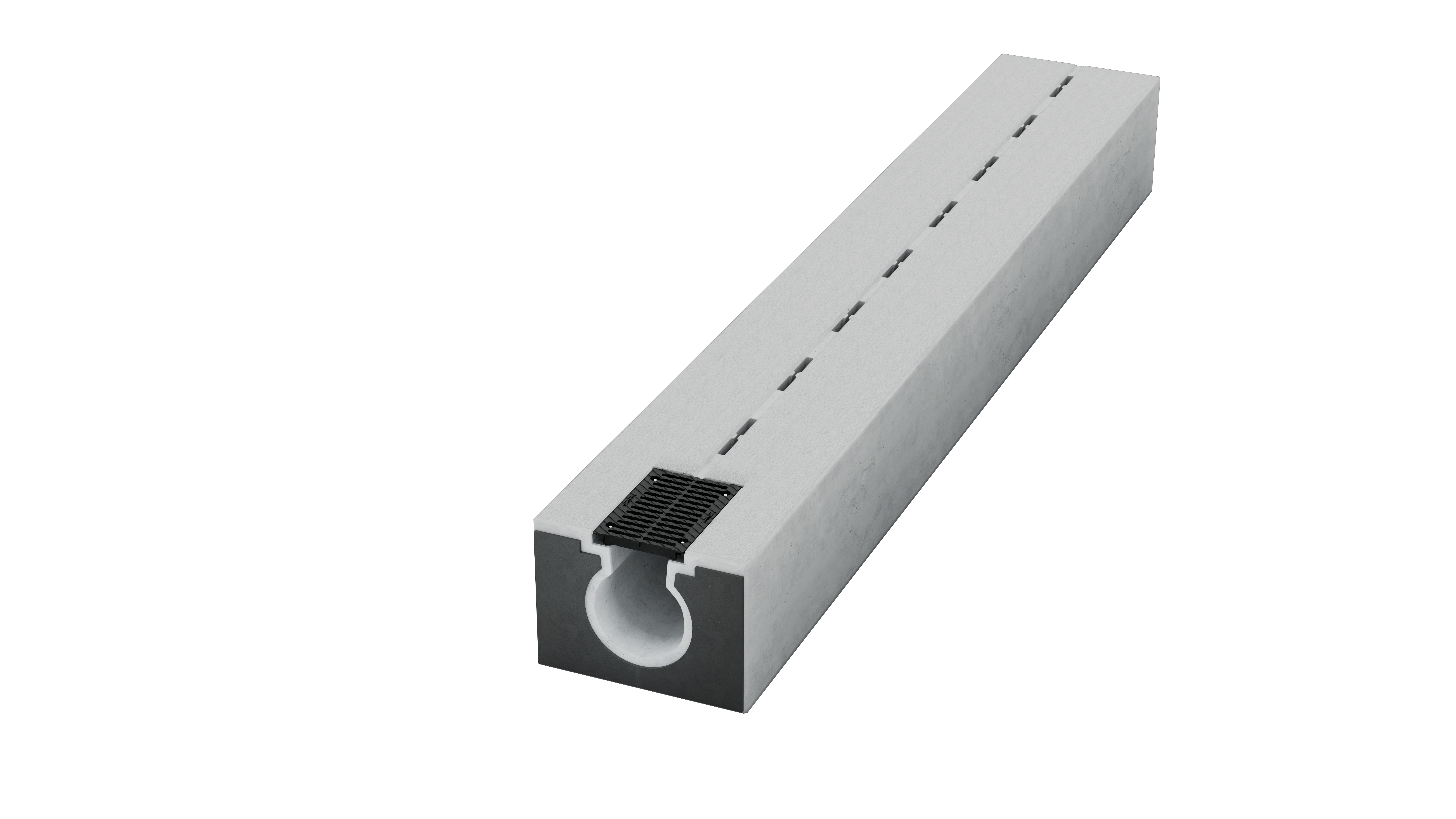

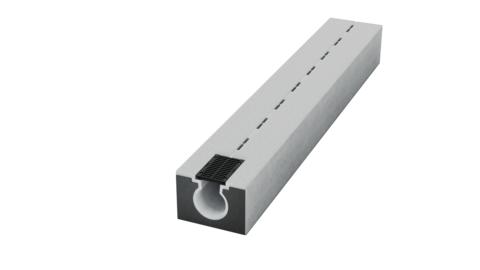

BIRCOport DN 340

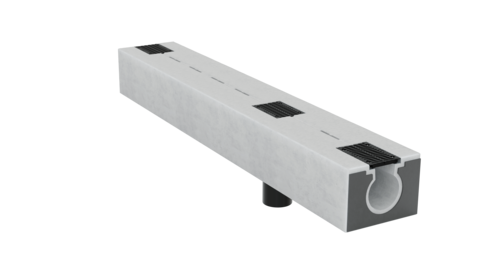

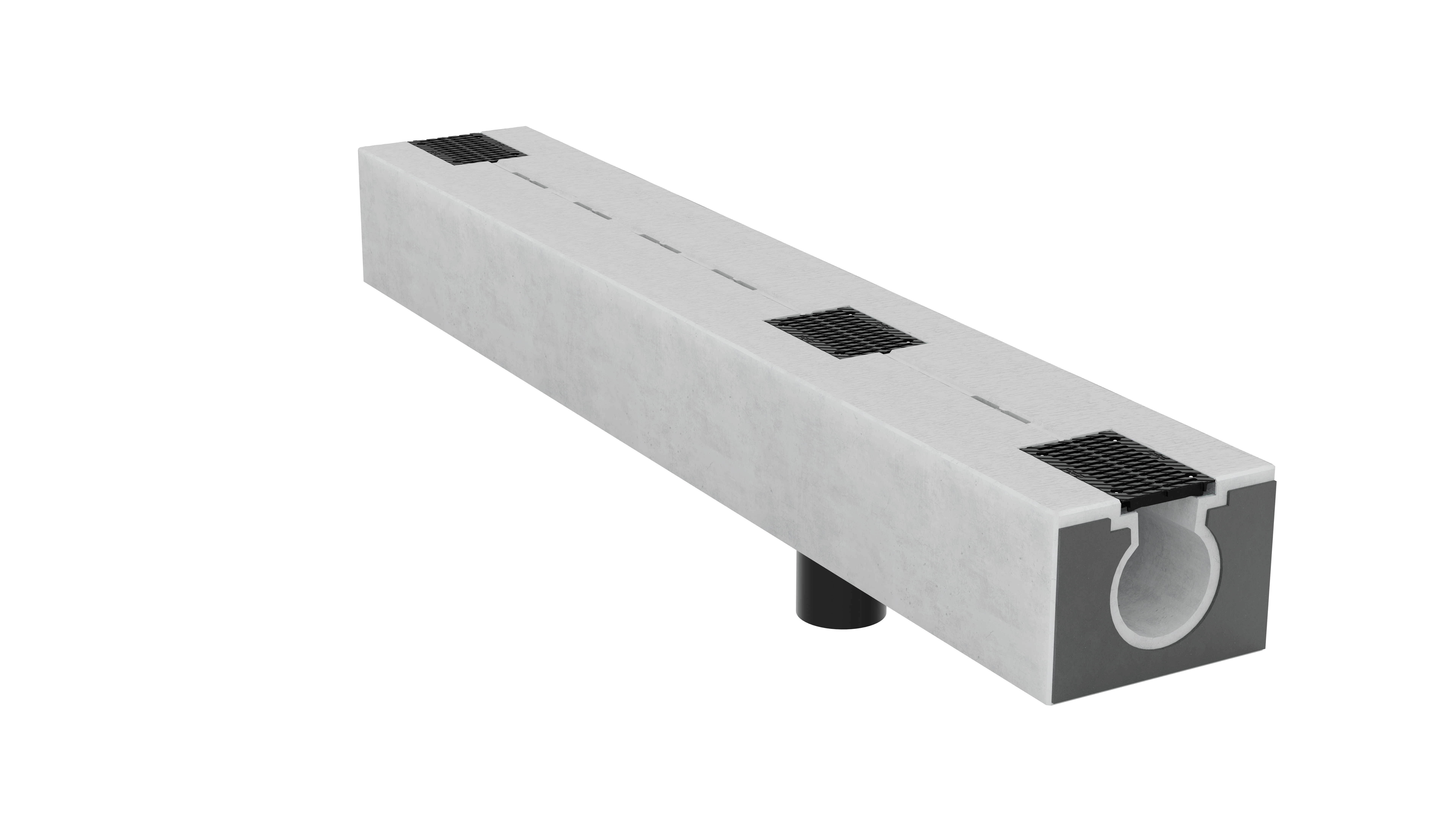

BIRCOport DN 340 with additional inspection opening and outlet
BIRCOport - Facts
- High-quality reinforced C 40/50 concrete
- Slot channel system without inbuilt fall, NW 340
- Can be used with or without a foundation on site

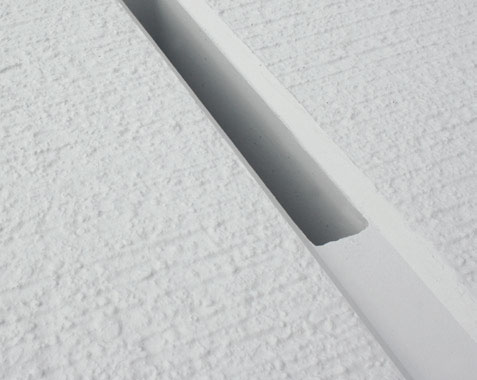

- Self-cleaning slot,
- Slot length (top/bottom): 300/320 mm
- Slot width (top/bottom): 30/50 mm
- Pre-assembled PE foam panel at the end of the channel as a joint formation
- Double-slotted DI grating for easy inspection of the sealing joint
- Profiled surface
- ASR-resistant acc. to DIN 1045-2
- Certification: DIBt (Z-74.4-114), CE, grouting in accordance with the WHG is possible
- Load class F 900 (DIN EN 1433) or individual static verification
BIRCOport - Application areas

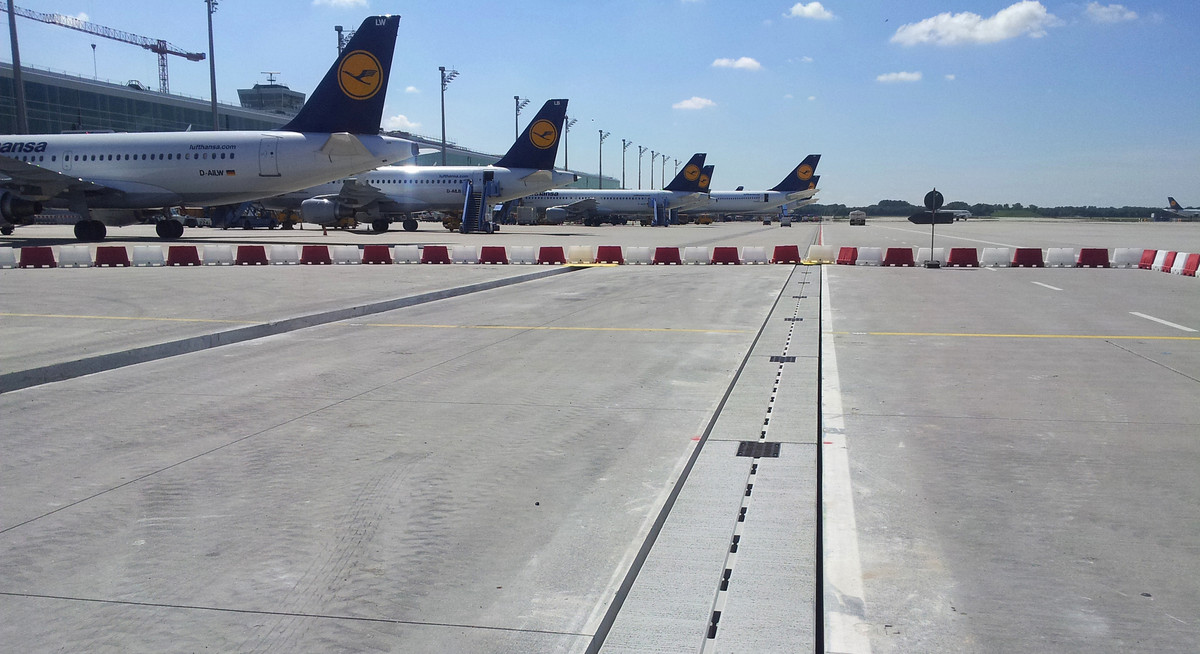

- Airports/Airside
- Inland and sea ports
- Container terminals and logistic areas
- Areas with maximum loads
- Military operating areas
- WRA (Water Resources Act)/ LAU areas (areas for storage, filling and transfer facilities for watercontamination)

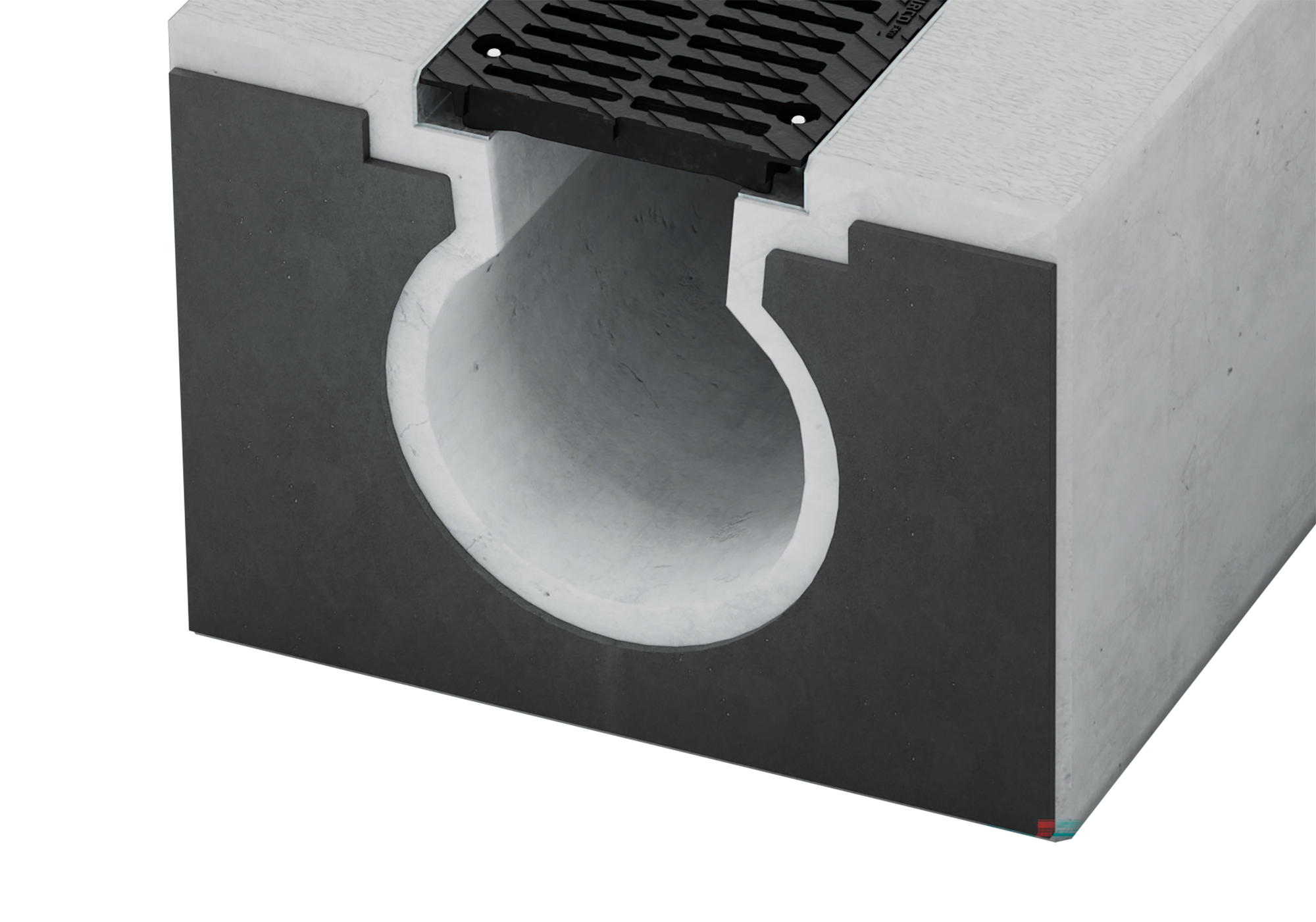

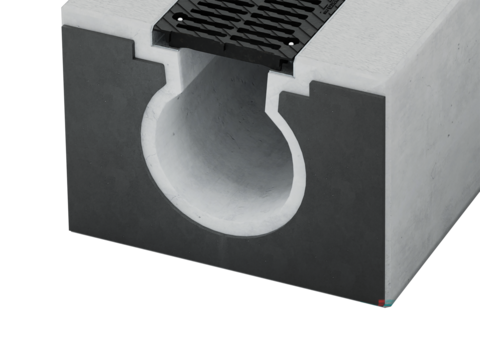

Pre-assembled PE foam panel at the end of the channel as a joint formation
Large inlet opening and a structured surface running perpendicular to the channel
Maximum expertise for the most demanding requirements
The ideal channel system for bespoke site planning. Whether for new builds or refurbishments, BIRCOport allows the system to be intelligently adapted to the key parameters. No on-site foundations are required.
Simply good planning
When every minute counts in commercial spaces, you need a partner like BIRCO to help you carry out your construction project efficiently and safely.
- Detailed planning
- Customised solutions
- Assessments and certifications
- Construction supervision
- Personal support

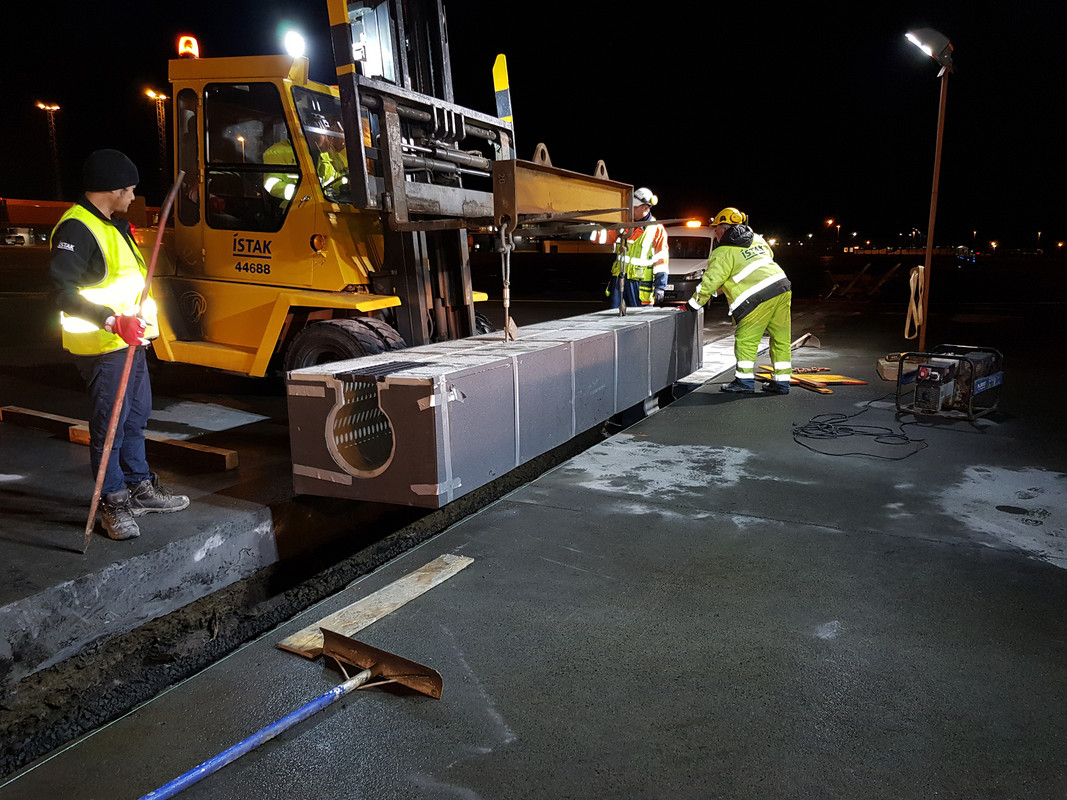

Installation? No problem with BIRCO
- Cost- and time-efficient installation
- Rapid construction progress thanks to long sections: 5000 mm
- Settlement-free connection to the adjacent concrete surface
- Low profile: 590 mm / Width: 800 mm
- Inspection hatches and drains can be positioned as required
Proven track record
- Rapid water drainage and high retention capacity
- Suitable for LAU systems, fuels, oils and de-icing agents
- Easy maintenance
- Long-lasting performance thanks to high-quality materials
