Technical drawings for BIRCOsir® - small dimensions as PDF and .dwg

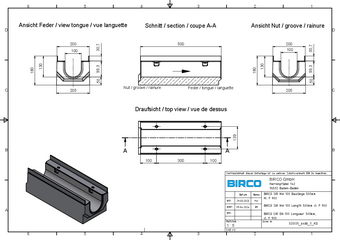

BIRCOsir® NW 100, channel 0/0, 0.5 m
BIRCOsir® NW 100, channel 0/0, 0.5 m
[PDF, 202,51 KB ]
BIRCOsir® NW 100, channel 0/0, 0.5 m

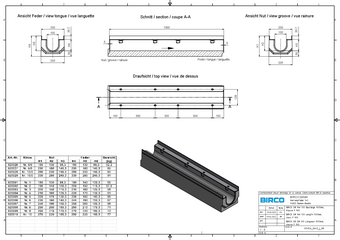

BIRCOsir® NW 100, channel 0/0, 1 m
BIRCOsir® NW 100, channel 0/0, 1 m
[PDF, 399,14 KB ]
BIRCOsir® NW 100, channel 0/0, 1 m

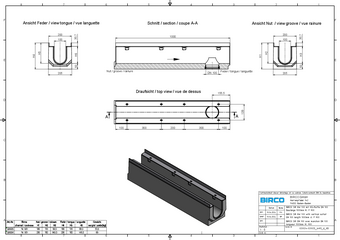

BIRCOsir® NW 100, channel 0/0, 1 m, with outlet
BIRCOsir® NW 100, channel 0/0, 1 m, with outlet
[PDF, 395,65 KB ]
BIRCOsir NW 100
BIRCOsir® NW 100, channel 0/0, 1 m, with outlet

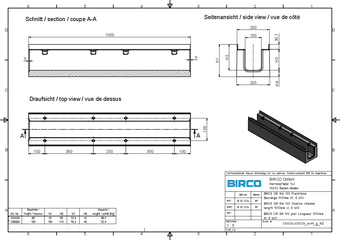

BIRCOsir® NW 100, shallow channel
BIRCOsir® NW 100, shallow channel
[PDF, 301,48 KB ]
BIRCOsir® NW 100, shallow channel

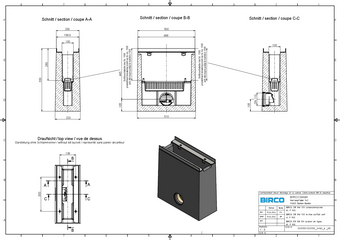

BIRCOsir® NW 100, outfall unit
BIRCOsir® NW 100, outfall unit
[PDF, 251,03 KB ]
BIRCOsir® NW 100, outfall unit

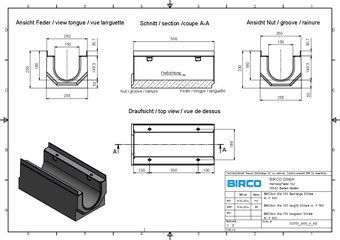

BIRCOsir® NW 150, channel 0/0, 0.5 m
BIRCOsir® NW 150, channel 0/0, 0.5 m
[PDF, 211,22 KB ]
BIRCOsir® NW 150, channel 0/0, 0.5 m

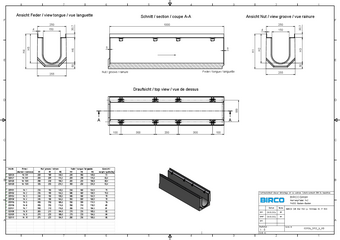

BIRCOsir® NW 150, channel 0/0, 1 m
BIRCOsir® NW 150, channel 0/0, 1 m
[PDF, 363,05 KB ]
BIRCOsir® NW 150, channel 0/0, 1 m

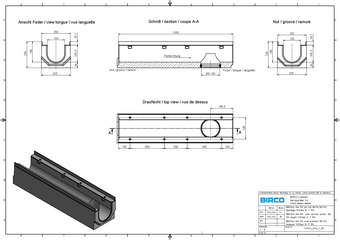

BIRCOsir® NW 150, channel 0/0, 1 m, with outlet
BIRCOsir® NW 150, channel 0/0, 1 m, with outlet
[PDF, 264,26 KB ]
BIRCOsir® NW 150, channel 0/0, 1 m, with outlet

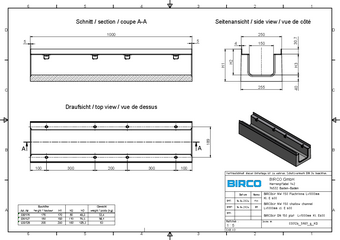

BIRCOsir® NW 150, shallow channel
BIRCOsir® NW 150, shallow channel
[PDF, 297,51 KB ]
BIRCOsir® NW 150, shallow channel

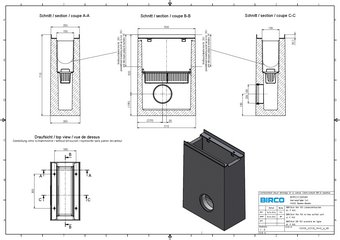

BIRCOsir® NW 150, outfall unit
BIRCOsir® NW 150, outfall unit
[PDF, 250,94 KB ]
BIRCOsir® NW 150, outfall unit

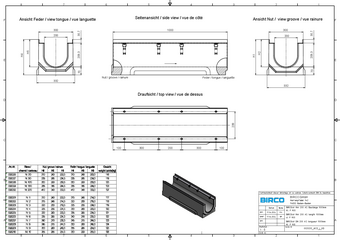

BIRCOsir® NW 200 AS channel, 1 m
BIRCOsir® NW 200 AS channel, 1 m
[PDF, 393,36 KB ]
BIRCOsir® NW 200 AS channel, 1 m

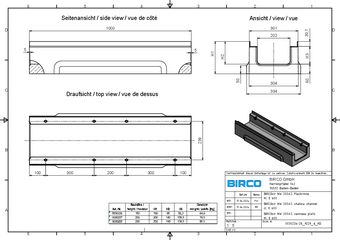

BIRCOsir® NW 200 AS shallow channel
BIRCOsir® NW 200 AS shallow channel
[PDF, 302,02 KB ]
BIRCOsir® NW 200 AS shallow channel

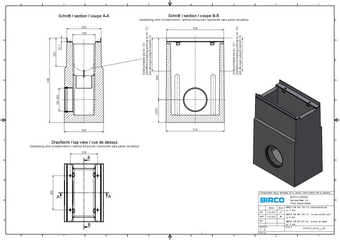

BIRCOsir® NW 200 AS outfall unit
BIRCOsir® NW 200 AS outfall unit
[PDF, 267,98 KB ]
BIRCOsir® NW 200 AS, Liniensinkkasten
