Technical drawings BIRCOlight® as PDF and .dwg

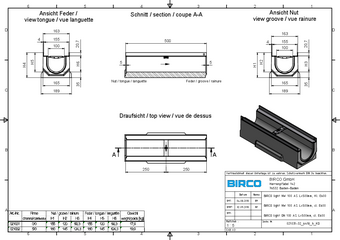

BIRCOlight® with steel angles NW 100 AS channel, 0.5 m
[PDF, 364,48 KB ]
BIRCOlight® with steel angles NW 100 AS channel, 0.5 m

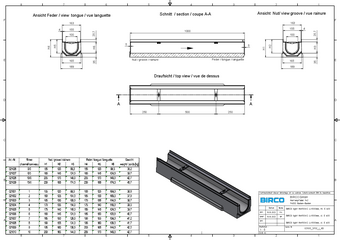

BIRCOlight® with steel angles NW 100 AS channel, 1 m
[PDF, 470,67 KB ]
BIRCOlight® with steel angles NW 100 AS channel, 1 m

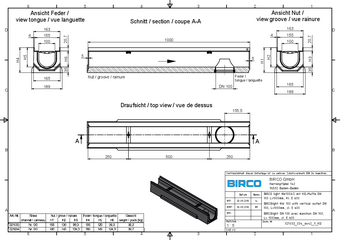

BIRCOlight® with steel angles NW 100 AS channel, 1 m, with outlet
[PDF, 327,31 KB ]
BIRCOlight® mit Stahlzarge NW 100 AS, Rinne 1 m, mit Ablauf

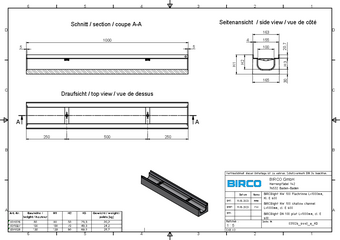

BIRCOlight® with steel angles NW 100 AS shallow channel
[PDF, 277,17 KB ]
BIRCOlight® with steel angles NW 100 AS shallow channel

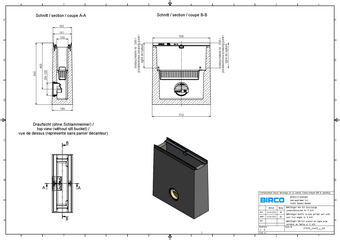

BIRCOlight® with steel angles NW 100 AS outfall unit
[PDF, 236,01 KB ]
BIRCOlight® with steel angles NW 100 AS outfall unit

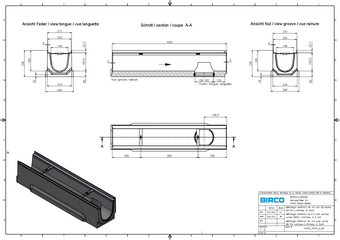

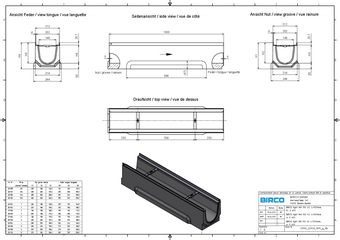

BIRCOlight® with steel angles NW 150 AS channel, 1 m
[PDF, 342,39 KB ]
BIRCOlight® with steel angles NW 150 AS channel, 1 m
BIRCOlight® with steel angles NW 150 AS channel, 1 m, with outlet
[PDF, 266,64 KB ]
BIRCOlight® mit Stahlzarge NW 150 AS, Rinne 1 m, mit Ablauf

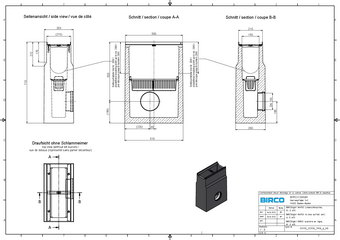

BIRCOlight® with steel angles NW 150 AS outfall unit
[PDF, 222,20 KB ]
BIRCOlight® with steel angles NW 150 AS outfall unit

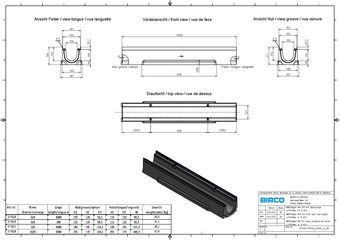

BIRCOlight® with DI angles NW 100 channel, 1 m
[PDF, 344,21 KB ]
BIRCOlight® with DI angles NW 100 channel, 1 m

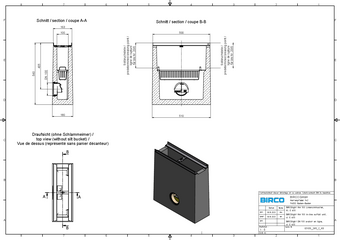

BIRCOlight® with DI angles NW 100 outfall unit
[PDF, 250,87 KB ]
BIRCOlight® with DI angles NW 100 outfall unit

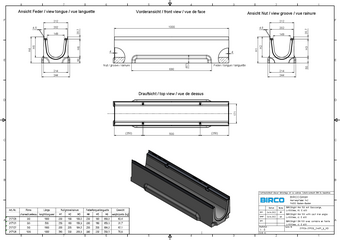

BIRCOlight® with DI angles NW 150 channel, 1 m
[PDF, 541,21 KB ]
BIRCOlight® with DI angles NW 150 channel, 1 m

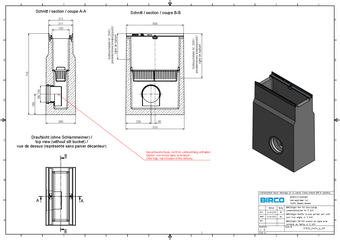

BIRCOlight® with DI angles NW 150 outfall unit
[PDF, 258,00 KB ]
BIRCOlight® with DI angles NW 150 outfall unit

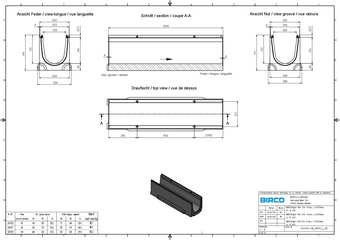

BIRCOlight® triloc NW 200 channel, 1 m
[PDF, 401,33 KB ]
BIRCOlight® triloc NW 200 channel, 1 m

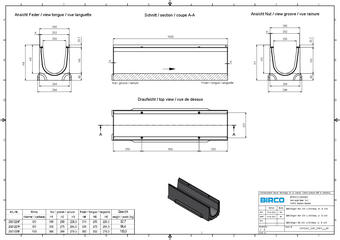

BIRCOlight® triloc NW 200 channel, 1 m, with bolt fastening
[PDF, 429,17 KB ]
BIRCOlight® triloc NW 200 channel, 1 m, with bolt fastening

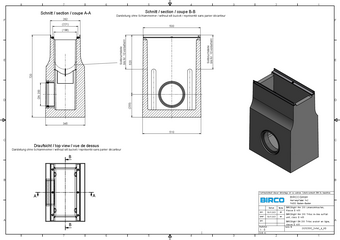

BIRCOlight® triloc NW 200 outfall unit, height 720
[PDF, 257,78 KB ]
BIRCOlight® triloc NW 200 outfall unit, height 720
BIRCOlight® triloc NW 200 outfall unit, height 720, with bolt fastening
[PDF, 253,91 KB ]
BIRCOlight® triloc NW 200 outfall unit, height 720, with bolt fastening

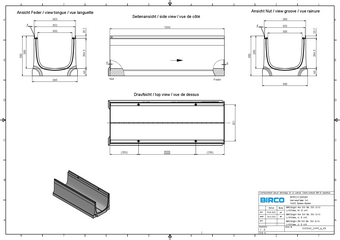

BIRCOlight® triloc NW 300 channel, 1 m
[PDF, 250,27 KB ]
BIRCOlight® triloc NW 300 channel, 1 m
