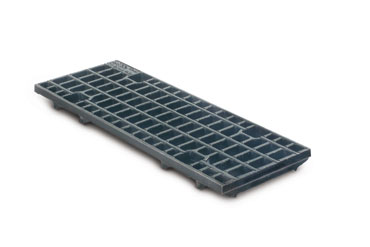

Mesh grating | Cast

The monolithic cast portion combines the large inlet cross-section of the grating with the mechanical stability of the cast grating cover. Best hydraulic values.

• Black-immersion lacquered or galvanised
• For nominal width: 100 - 400
• Up to 8-point per metre M12/A2- / M16/A2 bolt fastening
• Alternatively Easylock fastening
• A 15 - E 600
• Construction length: 0.5 m
